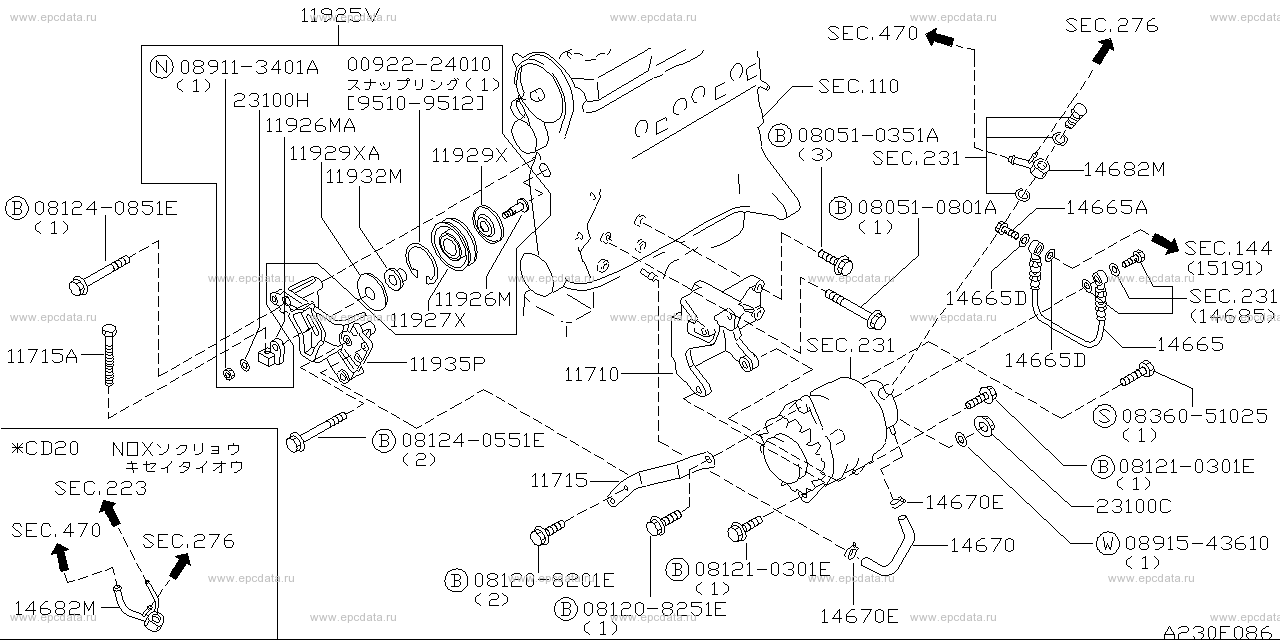

230 - alternator fitting (engine) for Nissan Vanette Serena KVC23
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T | 10.1995 - 01.1997 |
| 0092224010 080510351A 080510801A 081208201E 081208251E 081210301E 081240551E 081240851E 0836051025 089113401A 0891543610 11710 - bracket, alternator 11715 - bar, adjusting alternator 11715A - bolt 11925V - pulley assembly, idler 11926M - shaft, idler pulley 11926MA - shaft, idler pulley 11927X - pulley, assembly 11929X - cover, idler pulley 11929XA - cover, idler pulley 11932M - collar, idler pulley 11935P - bracket, idler pulley 14665 - tube assembly, oil 14665A - bolt, eye 14665D - gasket, oil tube 14670 - hose, oil return 14670E - clamp, hose 14682M - connector 23100C - nut 23100H - washer, wave |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20ET | 01.1997 - 01.1998 | |
| CD20ET | 01.1998 - ... |
| 0009222401 080510351A 080510801A 081208201E 081208301E 081240551E 081240851E 0836051062 089113401A 0891543610 11713M - nut, stopper alternator 11715 - bar, adjusting alternator 11716 - bolt 11925V - pulley assembly, idler 11926M - shaft, idler pulley 11926MA - shaft, idler pulley 11927X - pulley, assembly 11929X - cover, idler pulley 11929XA - cover, idler pulley 11932M - collar, idler pulley 11935P - bracket, idler pulley 11948X - bolt, adjust idler pulley 23100C - nut 23100H - washer, wave |
